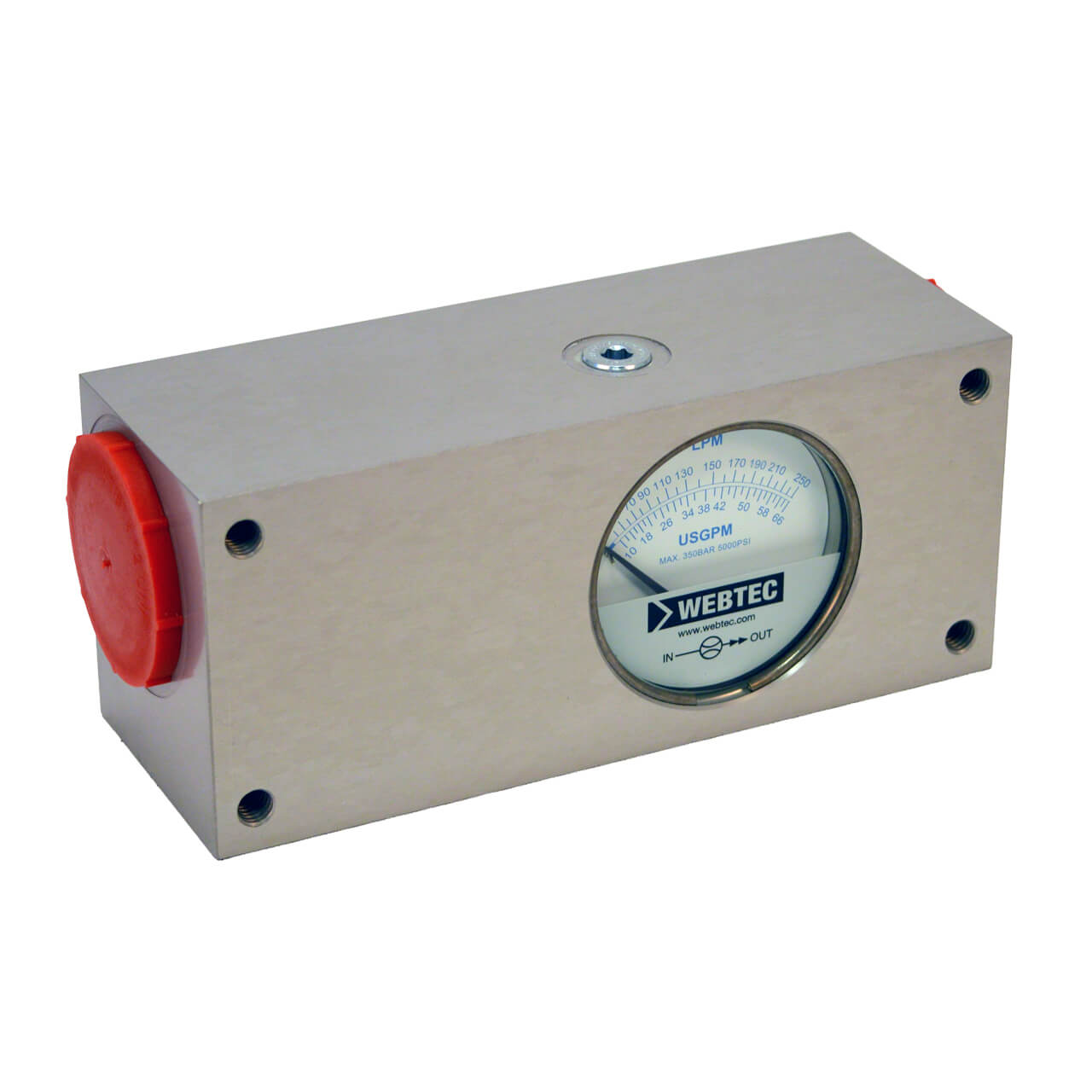

Hydraulic In-Line Flow Indicator FI1500 Series

Flow Indicators are designed for continuous monitoring or intermittent use commissioning and servicing hydraulic systems up to 350 bar, 5000 psi.

The large clear 63mm diameter dial ensures that quick checks can be made to determine pump performance and setting of flow control valves. They can be used on mobile and industrial hydraulic circuits. Also lubrication and coolant systems using oil.

These direct acting flow indicators can be installed in hazardous areas or on applications where no power is available. The flow indicator design ensures good reliability and minimises the effects of contamination.

  • Maximum Rated Pressure: Up to 350 bar, 5000 psi
  • Maximum Rated Flow: Up to 400 L/min, 100 US gpm
  • Ambient Temperature: -10 to 50°C, 14 to 122°F
  • Porting: BSPP, SAE
  • Material: Body Materials: Aluminium 2011T6, Internal Materials: Mainly Brass, Seals: FKM
  • Weight: 3.2 kg, 7 lb

The FI 1500 flow indicators should not be installed in circuits where the flow is reversed.
